Automatic reset Motor thermal protector 17AM-D 140℃ For Washers And Dryers

Ask Lasest Price
Brand Name :	DESHENG
Certification :	UL VDE CE
Model Number :	17AM-D
Delivery Time :	3-10 days on order
Payment Terms :	T/T L/C D/P
Supply Ability :	5,000,000pcs/month

Add to Cart

Product Details
Company Profile

Automatic reset Motor thermal protector 17AM-D 140℃ For Washers And Dryers

Automotive Motor thermal protector 17AM-D 140℃ For Washers And Dryers

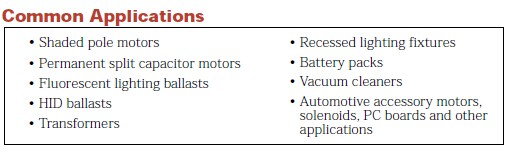

17AM-D is a thermally operated snap-action device which delivers the over heat protection with advanced structure, high contact capacity and long cycle life, widely used in motors, electric & thermal appliances, lightings, ballasts, transformers, automotive motors, integrated circuit, etc.

17AM-D 250V 10A and automatic reset AC thermal motor protector for Washers and dryers

Specifications

Normally close, open on temperature rise, automatic reset
Contact capacity	125Vac/16A, 250Vac/8A 600Vac/4A 24Vdc/20A
Cycles life	6,000-10,000cycles

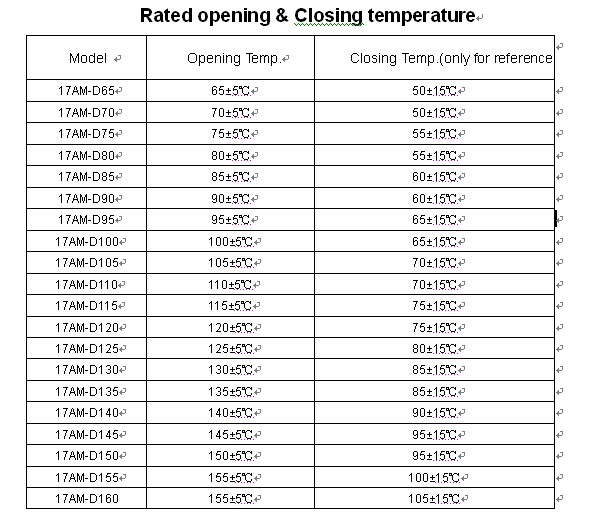

Open temperature	50°C to 160°C in increments of 5°C
Temperature Tolerance	±5°C
Differential Temperature	depending on open temperature
Seal	High-seal and low-seal gasket material available
Contact resistance	≤100 mW
Insulation resistance	The resistance between the leads and insulation sleeve is >100 M with 500 VDC at 25 °C.

Competitive Advantage

1. The strongest Chinese manufacturer, TS16949 and ISO14001 recognized.

2. Compact, miniature size.

3. UL,VDE,CE CQC Approved.

4. Individually temperature checked on modern, custom-designed equipments from Japan.

5. Snap–action disc

6. Gasketed steel case suitable for most impregnation processes

7. Professional solutions with wide selection of leads and insulating sleeves

8. Bimetal discs carry circuit current, so it is current and temperature double sensitivity for maximum design flexibility and application
