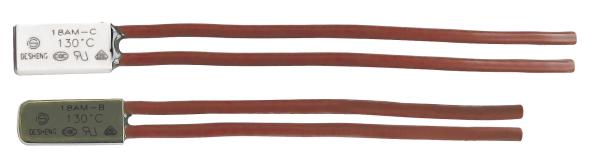

Thermal Cutoff Switch , 120℃ Circuit Thermostat 18AM-B

Thermal Cutoff Switch , 120℃ Circuit Thermostat 18AM-B

Description:

Changsheng 18AM-B series motor protector is built to meet almost any requirement of protection in a wide range of small motors, small transformers, solenoids, and more. This compact motor protector is the best solution to protect the wide variety of motors under 1 Hp used in industrial and domestic appliances against locked rotor and overload situations.
This motor protector consists of a metal SPCC housing that holds and protects the inner components against infiltration as well as mechanical deformation. In single–phase motors, the 18AM-B can be mounted directly in the main circuit to serve as an on– or in–winding protector.

Applications:

Fractional motors
Coils
Transformers
Washers and dryers
Dishwashers
Automotive accessory motors
PC boards
Battery charges
………and more.

Specifications:

Contact capacity	125Vac/8A, 250Vac/5A, 24Vdc/8A
Cycles life	6,000 cycles
Open temperature	50°C to 150°C in increments of 5°C
Temperature Tolerance	±5°C
Differential Temperature	depending on open temperature
Seal	Epoxy resin
Contact resistance	≤50 m
Insulation resistance	The resistance between the leads and insulation sleeve is >100 M with 500 VDC at 25 °C.
Lead wire pull strength	30 N applied from lead to lead for 5sec. No slip-off or rupture

Competitive Advantages

1. The strongest Chinese manufacturer, ISO 9001and ISO14001 recognized.

2. Compact, miniature size.

3. UL,VDE,CE CQC Approved.

4. Individually temperature checked on modern, custom-designed equipments from Japan.

5. Snap–action disc, normally on.

6. Epoxy resin

7. Bimetal discs carry circuit current, so it is current and temperature double sensitivity for maximum design flexibility and application

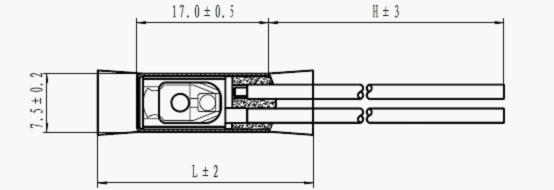

①PETInsulaiton sleeve ②Metal case ③Bracket ④Fixed plate ⑤Bimetallic disc

⑥Movable contact ⑦Stationary contact ⑧Epoxy resin

18AM-B with standard metal case

18AM-B with enforced metal case
