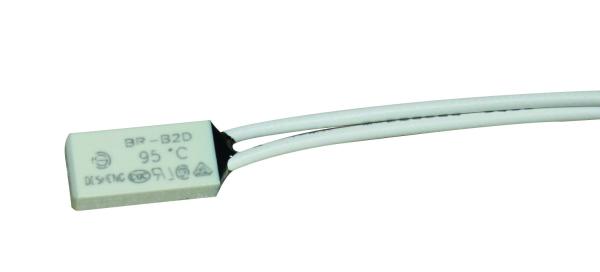

    Transformer 85℃ Motor Thermal Protector 250V / 5A 70mm Cable Customized

    Ask Lasest Price
    Brand Name : DESHENG
    Certification : UL VDE CE CQC
    Model Number : BR-B2D
    Delivery Time : 3-10 days on order date
    Payment Terms : T/T
    Supply Ability : 3,000,000pcs/month
    • Product Details
    • Company Profile

    Transformer 85℃ Motor Thermal Protector 250V / 5A 70mm Cable Customized

    Adjustable BBQ Oven Temperature Controller / Thermal Cut Out Switch Manual Reset


    Oven Temperature Controller / Thermal Cut Out Switch -35°C to 350°C 20 Amps @ 240 Vac Main body temperature: T120 / T150 Faston Terminal Connections:6,3x0,8 mm DIN46244 Contact Closure Resistance:≤50mΩ Insulation Resistance:≥100MΩ Description: Changsheng WQS-I series bulb & capillary thermostats are factory calibrated to a predetermined temperature range. This design offers a changeover thermal switch and an optional auxiliary switch that is useful for activation of an alarm or cooling fan. The principles of operation allow this design to be surprisingly cost effective and a leading choice for use in many applications where precision sensing is required while remaining on a tight budget. When temperature rises, the internal fluid located within the bulb expands through a capillary tube to an expandable diaphragm that is configured within the remote thermostat body. This diaphragm assembly activates the electrical contacts at the calibrated temperature set point. The WY-I series is available with a front auxiliary switch as optional. Specifications: Normally close, open on temperature rise, manual reset, Earth Terminal Option Working voltage and current 20 Amps @ 240 Vac Ø Phial diameter 3/6 mm Cycles life 100,000 cycles Open temperature -35°C to 350°C Temperature Tolerance ±5°C, ±7°C, ±10°C, ±12°C Differential Temperature depending on open temperature Contact resistance ≤100 m Capillary length 300~ 3000 mm; other lengths available upon request Body temperature T120 / T150 Faston Terminal Connections 6,3x0,8 mm DIN46244 Contact Closure Resistance: ≤50mΩ Insulation Resistance ≥100MΩ Speed of response 1.0℃/min .Min. electric current 200mA Typical Model Operating temperature Switch Voltage (V) Current (A) Maximum Temperature Sensing part(℃) OFF(℃) DIFF(K) WQS50A-II 50±3 Manual reset 400/250 16 80 WQS120A-II 120±6 Manual reset 400/250 16 160 WQS230A-II 230±8 Manual reset 400/250 16 270 WQS260A-II 260±10 Manual reset 400/250 16 300 WQS300A-II 300±15 Manual reset 400/250 16 350.


    Main characteristics:


    Normally close, open on temperature rise, manual reset, Earth Terminal Option
    Working voltage and current

    20 Amps @ 240 Vac

    Ø Phial diameter

    3/6 mm

    Cycles life100,000 cycles
    Open temperature-35°C to 350°C
    Temperature Tolerance±5°C, ±7°C, ±10°C, ±12°C
    Differential Temperaturedepending on open temperature
    Contact resistance

    ≤100 m

    Capillary length

    300~ 3000 mm; other lengths available upon request

    Body temperature

    T120 / T150

    Faston Terminal Connections

    6,3x0,8 mm DIN46244

    Contact Closure Resistance:

    ≤50mΩ

    Insulation Resistance

    ≥100MΩ

    Speed of response

    1.0℃/min

    Min. electric current

    200mA


    Typical

    Model

    Operating temperatureSwitch

    Voltage

    (V)

    Current

    (A)

    Maximum

    Temperature

    Sensing part(℃)

    OFF(℃)DIFF(K)
    WQS70A-I70±5Manual reset400/25020130
    WQS95A-I95±4

    Manual reset


    400/25020150
    WQS140A-I140±4Manual reset400/25020160

    Applications:


    ■ - 10 / +16 Refrigeration
    ■ -35 / +35 Fridge
    ■ 0 / 40 Ambient
    ■ 0 / 85 Boliers / Water heaters
    ■ 0 / 93 Dishwashers
    ■ 30 / 110 Bain Marie
    ■ 60 / 200 Deep-fryer
    ■ 50 / 250 Oven
    ■ 50 / 300 Oven
    ■ Other ranges upon request


    Competitive Advantages:


    1.UL VDE CE CQC Approved.
    2. A variety of coating configuration and shell materials are available according to different usages
    3. RoHs (2002/95/EC Directive) compliant
    4. Customized adjuster rod lengths and requirements are accepted
    5. To supply adjustable knob, bezel and mounting screws
    6. Adjustable temperature with positive contact separation
    7. Mounting bushings/fittings and various sealing bushings are available
    8. SPST or SPDT contact configuration
    9. Durable stainless steel or copper construction
