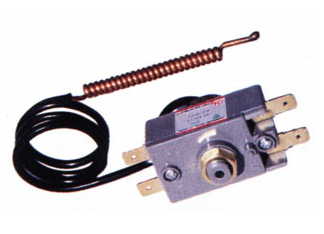

Adjustable Bulb And Capillary Thermostat Temperature Controlled Switch For Oven / BBQ

UL VDE CE CQC Approved

20 Amps @ 240 Vac

Opening temperature range :-35°C to 350°C

Description:

Changsheng WQS-I series bulb & capillary thermostats are factory calibrated to a predetermined temperature range. This design offers a changeover thermal switch and an optional auxiliary switch that is useful for activation of an alarm or cooling fan. The principles of operation allow this design to be surprisingly cost effective and a leading choice for use in many applications where precision sensing is required while remaining on a tight budget. When temperature rises, the internal fluid located within the bulb expands through a capillary tube to an expandable diaphragm that is configured within the remote thermostat body. This diaphragm assembly activates the electrical contacts at the calibrated temperature set point. The WY-I series is available with a front auxiliary switch as optional.

Main characteristics:

Applications:

■ - 10 / +16 Refrigeration
■ -35 / +35 Fridge
■ 0 / 40 Ambient
■ 0 / 85 Boliers / Water heaters
■ 0 / 93 Dishwashers
■ 30 / 110 Bain Marie
■ 60 / 200 Deep-fryer
■ 50 / 250 Oven
■ 50 / 300 Oven
■ Other ranges upon request

Competitive Advantages:

More than 20  Years in thermostat industry

JIANGSU CHANGSHENG ELECTRIC APPLIANCE CO.,LTD, specializes thermostat/thermal protector/thermal fuse, thermal switch, thermal cutouts, thermal cutoff which are used in motors, transfers, lighting, garden toolings, vacuum cleaners, ballast, PCB, etc.

Famous customers

Welling motor, broad-ocean motor, Kaibang motor, Midea, Hitachi, Panasonic, Gree, Nidec, Sharp, Emerson, W.E.T, PEPI, Hanning, copreci, IGB etc.

Owning Invention and Utility Patents
We are a member of the National Technical Committee on thermal protector of Standardization Administration of China and take part in setting up and upgrading the national standards of protector, which is equivalent to the IEC standards in the domestic protector market. Plus, we have six invention patents for our technologies of  thermal cutoff.

33 Million Units output per month

17AM-D 5.5 Million, 18AM 2.5 million, BR series 3 million;  BR-A2D 15 million; BR-B6D 2 million

Safety certifications

UL, CQC, CK, TUV, VDE.

Quality Management system

ISO9001, IATF16949, ISO14001

Contact Us
A one-year warranty is also offered for your peace of mind. To learn more about what we can do for you, contact us today.
