    CS4TM Overload Protector Compressor,Snap–action Motor Thermal Protector

    Ask Lasest Price
    Model Number : CS4TM
    Brand Name : DESHENG
    Certification : UL VDE CE,CQC.CB, KC
    Delivery Time : 3-10 days on order date
    Payment Terms : T/T L/C D/P
    Supply Ability : 500,000pcs/month
    • Product Details
    • Company Profile

    CS4TM Overload Protector Compressor,Snap–action Motor Thermal Protector

    Stainless Steel Capillary Tube Thermostat Fan Switch Normally Open For Bain Marie


    Adjustable Capillary Thermostat for Oven / BBQ , -35°C to 350°C


    UL VDE CE CQC Approved

    20 Amps @ 240 Vac

    Opening temperature range :-35°C to 350°C


    Description:

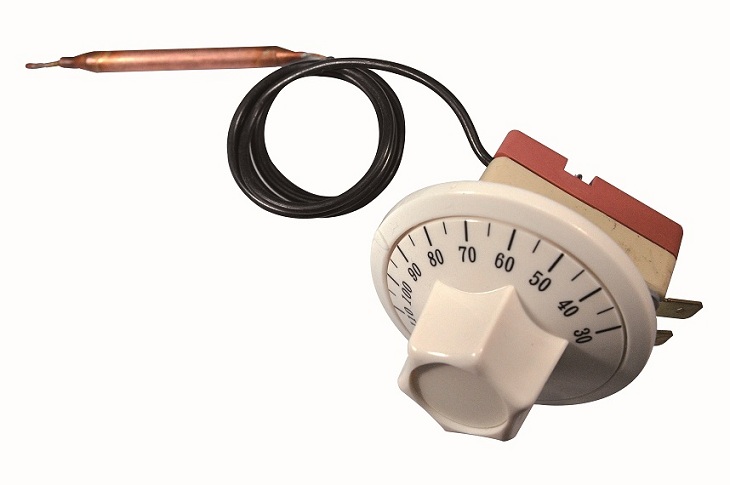

    Changsheng WQS-I series bulb & capillary thermostats are factory calibrated to a predetermined temperature range. This design offers a changeover thermal switch and an optional auxiliary switch that is useful for activation of an alarm or cooling fan. The principles of operation allow this design to be surprisingly cost effective and a leading choice for use in many applications where precision sensing is required while remaining on a tight budget. When temperature rises, the internal fluid located within the bulb expands through a capillary tube to an expandable diaphragm that is configured within the remote thermostat body. This diaphragm assembly activates the electrical contacts at the calibrated temperature set point. The WY-I series is available with a front auxiliary switch as optional.


    Main characteristics:


    Normally close, open on temperature rise, manual reset, Earth Terminal Option

    Working voltage and current

    20 Amps @ 240 Vac

    Ø Phial diameter

    3/6 mm

    Cycles life

    100,000 cycles

    Open temperature

    -35°C to 350°C

    Temperature Tolerance

    ±5°C, ±7°C, ±10°C, ±12°C

    Differential Temperature

    depending on open temperature

    Contact resistance

    ≤100 m

    Capillary length

    300~ 3000 mm; other lengths available upon request

    Body temperature

    T120 / T150

    Faston Terminal Connections

    6,3x0,8 mm DIN46244

    Contact Closure Resistance:

    ≤50mΩ

    Insulation Resistance

    ≥100MΩ

    Speed of response

    1.0℃/min

    Min. electric current

    200mA


    Typical

    Model

    Operating temperature

    Switch

    Voltage

    (V)

    Current

    (A)

    Maximum

    Temperature

    Sensing part(℃)

    OFF(℃)

    DIFF(K)

    WQS70A-I

    70±5

    Manual reset

    400/250

    20

    130

    WQS95A-I

    95±4

    Manual reset


    400/250

    20

    150

    WQS140A-I

    140±4

    Manual reset

    400/250

    20

    160



    Applications:


    ■ - 10 / +16 Refrigeration
    ■ -35 / +35 Fridge
    ■ 0 / 40 Ambient
    ■ 0 / 85 Boliers / Water heaters
    ■ 0 / 93 Dishwashers
    ■ 30 / 110 Bain Marie
    ■ 60 / 200 Deep-fryer
    ■ 50 / 250 Oven
    ■ 50 / 300 Oven
    ■ Other ranges upon request


    Competitive Advantages:


    1.UL VDE CE CQC Approved.

    2. A variety of coating configuration and shell materials are available according to different usages

    3. RoHs (2002/95/EC Directive) compliant

    4. Customized adjuster rod lengths and requirements are accepted

    5. To supply adjustable knob, bezel and mounting screws

    6. Adjustable temperature with positive contact separation

    7. Mounting bushings/fittings and various sealing bushings are available

    8. SPST or SPDT contact configuration

    9. Durable stainless steel or copper construction
